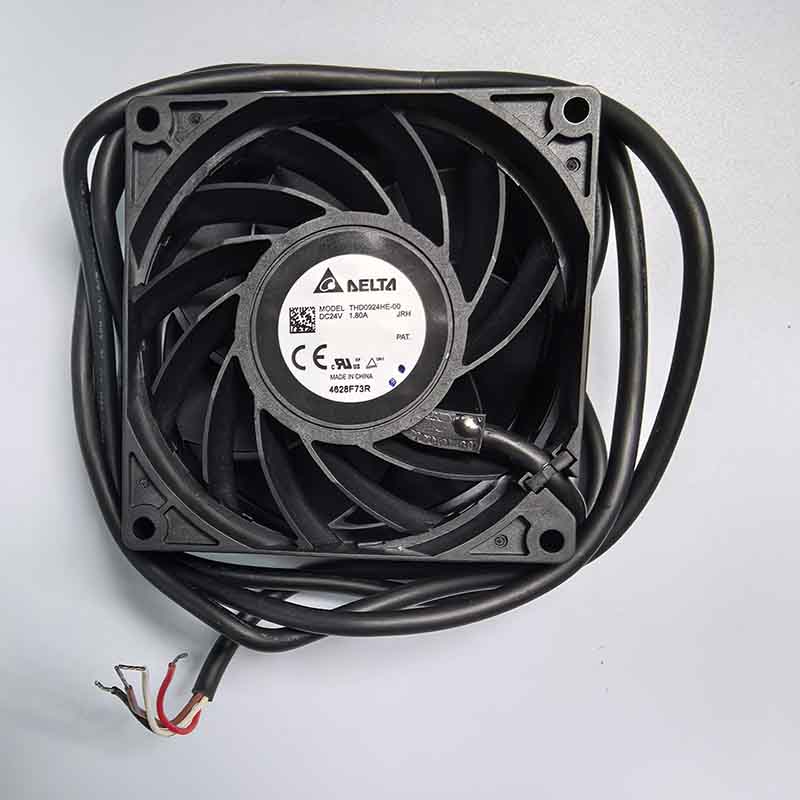

THD0924HE-00 F07 Delta 9238 IP68 Fan Blower Dual Ball Bearing Cooling
1. Basic Specifications Brand: Delta Electronics Model: THD0924HE-00 Dimension: 92×92×38 mm (9238 industrial standard size) Rated Power Supply: DC 24 V, rated current 1.80 A, rated power 43.2 W Bearing Type: Double ball bearing Wiring Definition: 4-pin PWM fan, supporting speed feedback signal and locked rotor protection Operating Voltage Range:…
Categories：
Tags:
Get A Quote
If you have any questions about our products and service,please feel free to leave us a message
1. Basic Specifications
- Brand: Delta Electronics
- Model: THD0924HE-00
- Dimension: 92×92×38 mm (9238 industrial standard size)
- Rated Power Supply: DC 24 V, rated current 1.80 A, rated power 43.2 W
- Bearing Type: Double ball bearing
- Wiring Definition: 4-pin PWM fan, supporting speed feedback signal and locked rotor protection
- Operating Voltage Range: 21.6 V ~ 26.4 V
- Optional Protection Grade: IP68 waterproof & dustproof for harsh damp and dusty environments
2. Core Performance Parameters
- Maximum Rotation Speed: Approximately 7200 RPM
- Maximum Airflow: Around 145 CFM
- Maximum Static Pressure: About 1480 Pa
- Noise Level at Full Speed: 66 dB(A)
- Blade Design: Bionic noise-reducing blades, balancing high air pressure and wind noise control
