PF80252B2-Q01C-A99 24V 3.05W SUNON Built in DC Inverter Cooling Fan

PF80252B2-Q01C-A99 24V 3.05W SUNON Built in DC Inverter Cooling Fan

Model: PF80252B2‑Q01C‑AB9 Manufacturer: SUNON (MagLev series) Dimension: 80 × 80 × 25 mm (8025 standard frame) Rated Voltage: DC 24 V Rated Power: 3.05 W Rated Current: 0.127 A Fan Type: DC brushless axial fan, 2‑wire power only, no tachometer and no PWM control Bearing Type: MagLev magnetic bearing Connector: 2‑pin flying‑wire harness Typical…

Categories：

SUNON cooling fan

Tags:

Email Us

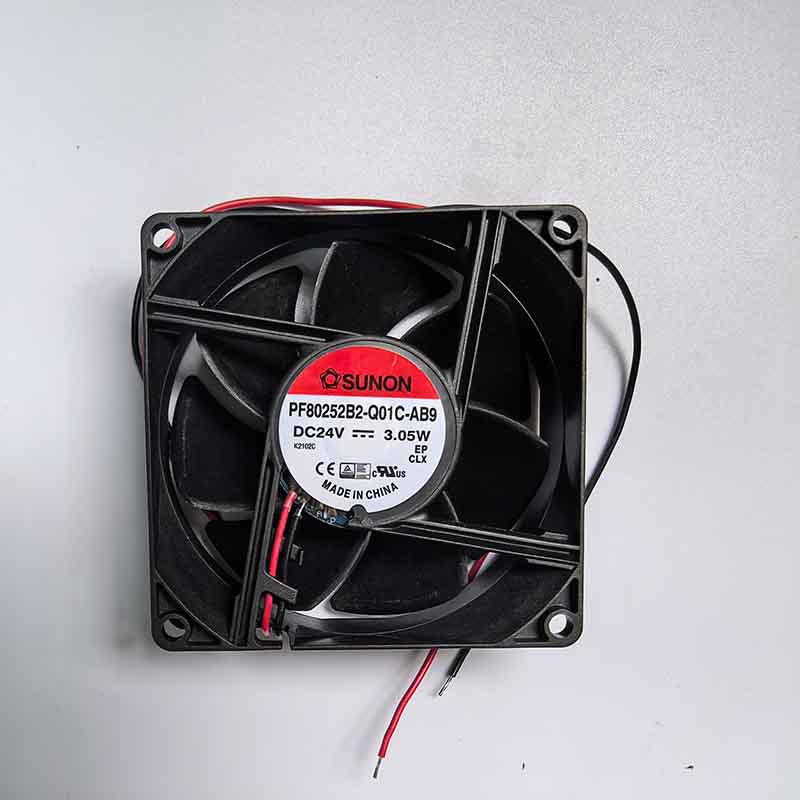

Model: PF80252B2‑Q01C‑AB9

Manufacturer: SUNON (MagLev series)

Dimension: 80 × 80 × 25 mm (8025 standard frame)

Rated Voltage: DC 24 V

Rated Power: 3.05 W

Rated Current: 0.127 A

Fan Type: DC brushless axial fan, 2‑wire power only, no tachometer and no PWM control

Bearing Type: MagLev magnetic bearing

Connector: 2‑pin flying‑wire harness

Typical Full‑speed RPM: 3100‑3400 RPM

Air Flow: approx 38‑42 CFM

Maximum Static Pressure: approx 5.5‑6.5 mmH₂O

Noise Level: approx 34‑38 dB(A) at full speed

Application Scenario: Industrial inverter, power supply, cabinet ventilation, general‑purpose equipment cooling

Place of Origin: Made in China

FAQ

Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.

Low MOQ, 1pc for sample checking is available

We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

1 let us know your requirements or application.

2 We quote according to your requirements or our suggestions.

3 customer confirms the samples and places deposit for formal order.

4 We arrange the production.

Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Yes, we offer 1years warranty to our products.After the warranty period, we can continue to provide after-sales service of products and replacement of spare parts
