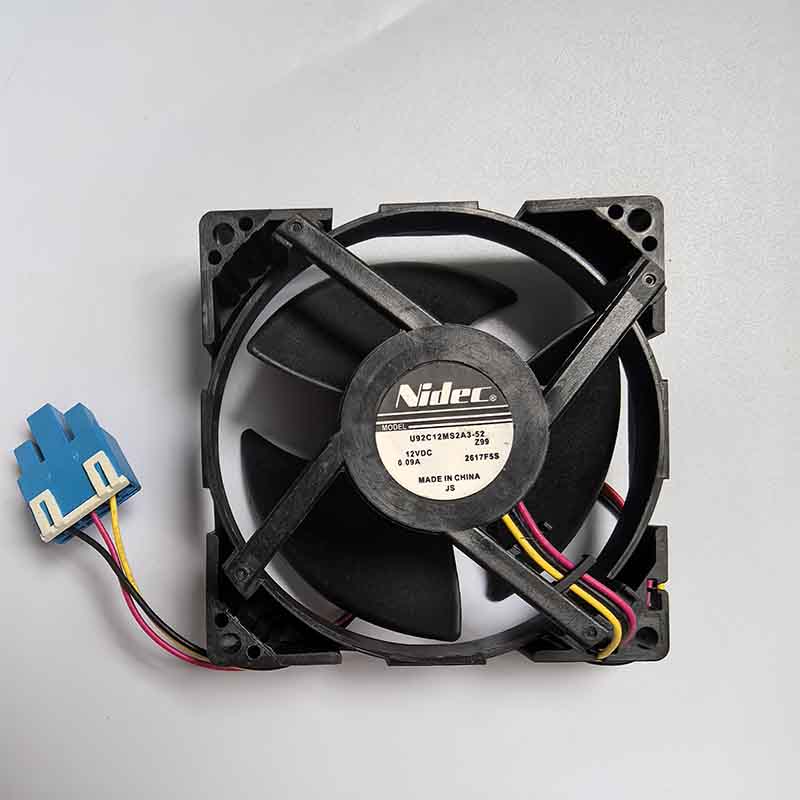

NIDECU92C12MS1B3-52J99 Refrigerator Refrigeration and Freezing Cooling Fan

冰箱风扇 U92c12ms2a3 52z9 12v 0.09a Model: U92C12MS2A3‑52 Manufacturer: Nidec Dimension: 92 × 92 × 25 mm (9225 frame) Rated Voltage: DC 12 V Rated Current: 0.09 A Rated Power: 1.08 W Fan Type: DC brushless axial fan, 3‑wire harness with tachometer speed‑feedback signal Bearing Type: Sleeve bearing Connector: 3‑pin flying‑wire harness Typical Full‑speed RPM:…

Categories：

Haier Refrigerator DC Fan, NIDEC brand fan

Tags:

Email Us

Model: U92C12MS2A3‑52

Manufacturer: Nidec

Dimension: 92 × 92 × 25 mm (9225 frame)

Rated Voltage: DC 12 V

Rated Current: 0.09 A

Rated Power: 1.08 W

Fan Type: DC brushless axial fan, 3‑wire harness with tachometer speed‑feedback signal

Bearing Type: Sleeve bearing

Connector: 3‑pin flying‑wire harness

Typical Full‑speed RPM: 1600‑1900 RPM

Air Flow: approx 30‑35 CFM

Maximum Static Pressure: approx 2.5‑3.2 mmH₂O

Noise Level: approx 24‑28 dB(A) at full speed

Application Scenario: Household appliances, low‑noise industrial equipment, chassis, instrument cooling

lace of Origin: Made in China

FAQ

Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.

Low MOQ, 1pc for sample checking is available

We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

1 let us know your requirements or application.

2 We quote according to your requirements or our suggestions.

3 customer confirms the samples and places deposit for formal order.

4 We arrange the production.

Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Yes, we offer 1years warranty to our products.After the warranty period, we can continue to provide after-sales service of products and replacement of spare parts
