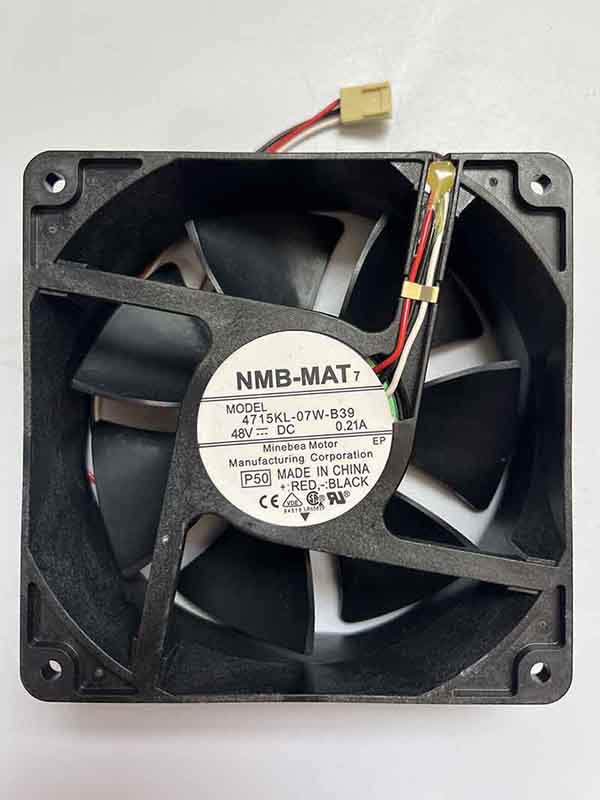

Meibeiya NMB-MAT 4715KL-07W-B39 axial fan 120X120X38mm

Meibeiya NMB-MAT 4715KL-07W-B39 axial fan 120X120X38mm

NMB‑MAT 4715KL‑07W‑B39 Cooling Fan Full Specifications Model: 4715KL‑07W‑B39 Manufacturer: NMB‑MAT (Minebea Motor) Dimension: 120 × 120 × 38 mm (12038 frame) Rated Voltage: DC 48 V Rated Current: 0.21 A Rated Power: 10.08 W Fan Type: DC brushless axial fan, 3‑wire harness with tachometer speed‑feedback signal Bearing Type: Ball bearing Connector: 3‑pin flying‑wire harness…

Categories：

NMBcooling fan

Tags:

Email Us

NMB‑MAT 4715KL‑07W‑B39 Cooling Fan

Full Specifications

Model: 4715KL‑07W‑B39

Manufacturer: NMB‑MAT (Minebea Motor)

Dimension: 120 × 120 × 38 mm (12038 frame)

Rated Voltage: DC 48 V

Rated Current: 0.21 A

Rated Power: 10.08 W

Fan Type: DC brushless axial fan, 3‑wire harness with tachometer speed‑feedback signal

Bearing Type: Ball bearing

Connector: 3‑pin flying‑wire harness

Typical Full‑speed RPM: 3200‑3600 RPM

Air Flow: approx 105‑115 CFM

Maximum Static Pressure: approx 14‑17 mmH₂O

Noise Level: approx 52‑56 dB(A) at full speed

Application Scenario: Telecom cabinet, network equipment, industrial inverter, 48V DC power‑supply device cooling

Place of Origin: Made in China

FAQ

Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.

Low MOQ, 1pc for sample checking is available

We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

1 let us know your requirements or application.

2 We quote according to your requirements or our suggestions.

3 customer confirms the samples and places deposit for formal order.

4 We arrange the production.

Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Yes, we offer 1years warranty to our products.After the warranty period, we can continue to provide after-sales service of products and replacement of spare parts
