Drone Fan AB03504HX100000 ADDA 3510 Fan 4V 3.5cm Small Blower

Drone Fan AB03504HX100000 ADDA 3510 Fan 4V 3.5cm Small Blower

ADDA ABD3504HX100000 Cooling Fan Full Specifications Model: ABD3504HX100000 Manufacturer: ADDA Dimension: 35 × 35 × 40 mm (3540 blower fan) Rated Voltage: DC 5V Rated Current: 0.40A Rated Power: 2.00W Fan Type: DC brushless centrifugal blower fan, 2‑wire harness Bearing Type: Hybrid bearing Connector: 2‑pin terminal Typical Full‑speed RPM: 7500‑8500 RPM…

Categories：

ADDA brand fan

Tags:

Email Us

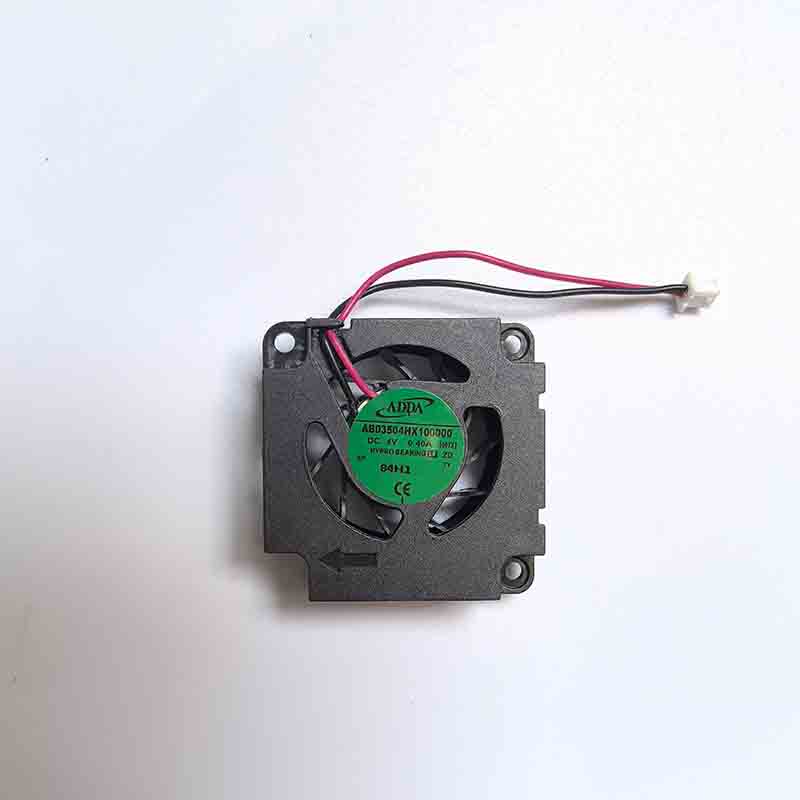

ADDA ABD3504HX100000 Cooling Fan

Full Specifications

Model: ABD3504HX100000

Manufacturer: ADDA

Dimension: 35 × 35 × 40 mm (3540 blower fan)

Rated Voltage: DC 5V

Rated Current: 0.40A

Rated Power: 2.00W

Fan Type: DC brushless centrifugal blower fan, 2‑wire harness

Bearing Type: Hybrid bearing

Connector: 2‑pin terminal

Typical Full‑speed RPM: 7500‑8500 RPM

Air Flow: approx 7‑9 CFM

Maximum Static Pressure: approx 18‑22 mmH₂O

Noise Level: approx 44‑48 dB(A) at full speed

Application Scenario: Miniature equipment, instrument, embedded device forced air cooling

Place of Origin: China

Adda3510 4v 0.4a 鼓风机

FAQ

Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.

Low MOQ, 1pc for sample checking is available

We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

1 let us know your requirements or application.

2 We quote according to your requirements or our suggestions.

3 customer confirms the samples and places deposit for formal order.

4 We arrange the production.

Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Yes, we offer 1years warranty to our products.After the warranty period, we can continue to provide after-sales service of products and replacement of spare parts
