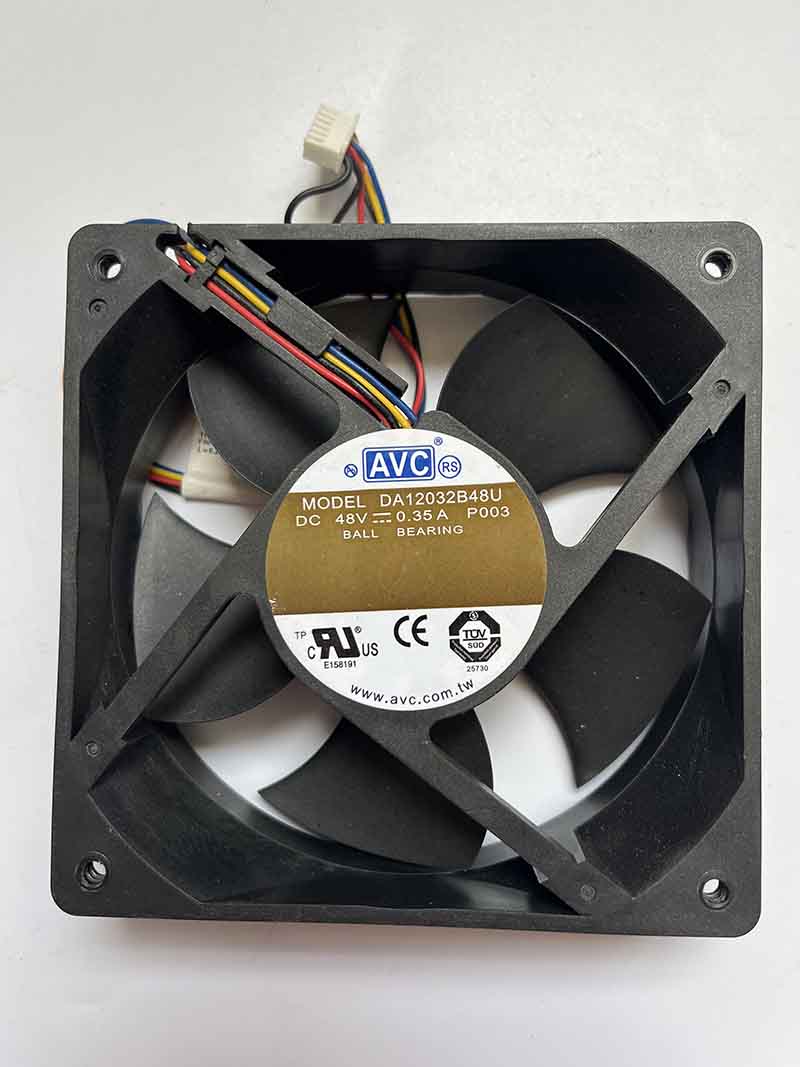

AVC DA12032B48U Cooling Fan

Full Specifications

Model: DA12032B48U

Manufacturer: AVC

Dimension: 120 × 120 × 32 mm (12032 axial fan)

Rated Voltage: DC 48 V

Rated Current: 0.35 A

Rated Power: 16.8 W

Fan Type: DC brushless axial fan, 4‑wire harness, PWM speed control + tachometer feedback

Bearing Type: Ball bearing

Connector: 4‑pin terminal

Typical Full‑speed RPM: 3200‑3600 RPM

Air Flow: approx 130‑140 CFM

Maximum Static Pressure: approx 8‑11 mmH₂O

Noise Level: approx 48‑52 dB(A) at full speed

Application Scenario: Communication cabinets, network equipment, 48V industrial chassis ventilation cooling

Place of Origin: China

Avc12032 48v 0.35a Da12032b48u

FAQ

Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.

Low MOQ, 1pc for sample checking is available

We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

1 let us know your requirements or application.

2 We quote according to your requirements or our suggestions.

3 customer confirms the samples and places deposit for formal order.

4 We arrange the production.

Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Yes, we offer 1years warranty to our products.After the warranty period, we can continue to provide after-sales service of products and replacement of spare parts
