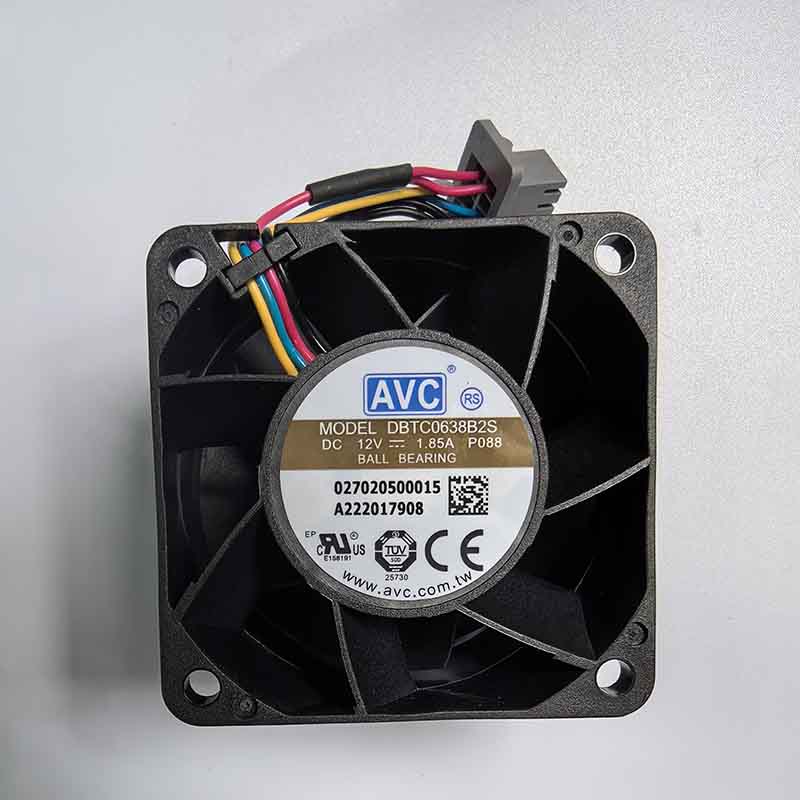

AVC 6038 12V 1.85A DBTC0638B2S High-Speed Inverter Server Cooling Fan 6cm

AVC DBTC0638B2S Cooling Fan Full Specifications Model: DBTC0638B2S Manufacturer: AVC Dimension: 60 × 60 × 38 mm (6038 axial fan) Rated Voltage: DC 12 V Rated Current: 1.85 A Rated Power: 22.2 W Fan Type: DC brushless axial fan, 4‑wire harness, PWM speed control + tachometer feedback Bearing Type: Ball bearing Connector: 4‑pin dedicated…

Categories：

AVC Brand Fan

Tags:

Email Us

AVC DBTC0638B2S Cooling Fan

Full Specifications

Model: DBTC0638B2S

Manufacturer: AVC

Dimension: 60 × 60 × 38 mm (6038 axial fan)

Rated Voltage: DC 12 V

Rated Current: 1.85 A

Rated Power: 22.2 W

Fan Type: DC brushless axial fan, 4‑wire harness, PWM speed control + tachometer feedback

Bearing Type: Ball bearing

Connector: 4‑pin dedicated terminal

Typical Full‑speed RPM: 7800‑8400 RPM

Air Flow: approx 75‑81 CFM

Maximum Static Pressure: approx 32‑36 mmH₂O

Noise Level: approx 58‑62 dB(A) at full speed

Application Scenario: High‑end servers, industrial power supplies, high‑heat‑density equipment forced air cooling

Place of Origin: China

Avc6038 12v 1.85a

FAQ

Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.

Low MOQ, 1pc for sample checking is available

We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

1 let us know your requirements or application.

2 We quote according to your requirements or our suggestions.

3 customer confirms the samples and places deposit for formal order.

4 We arrange the production.

Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Yes, we offer 1years warranty to our products.After the warranty period, we can continue to provide after-sales service of products and replacement of spare parts
